Charging point
The Charging Point CP001/002/003 is the connection between power and your application. It is designed to fit into all designs and comes in three different versions.
The CP001 is a simple cable with a jack plug that gets connected directly to the power cable. This charging point is very discreet and compact.

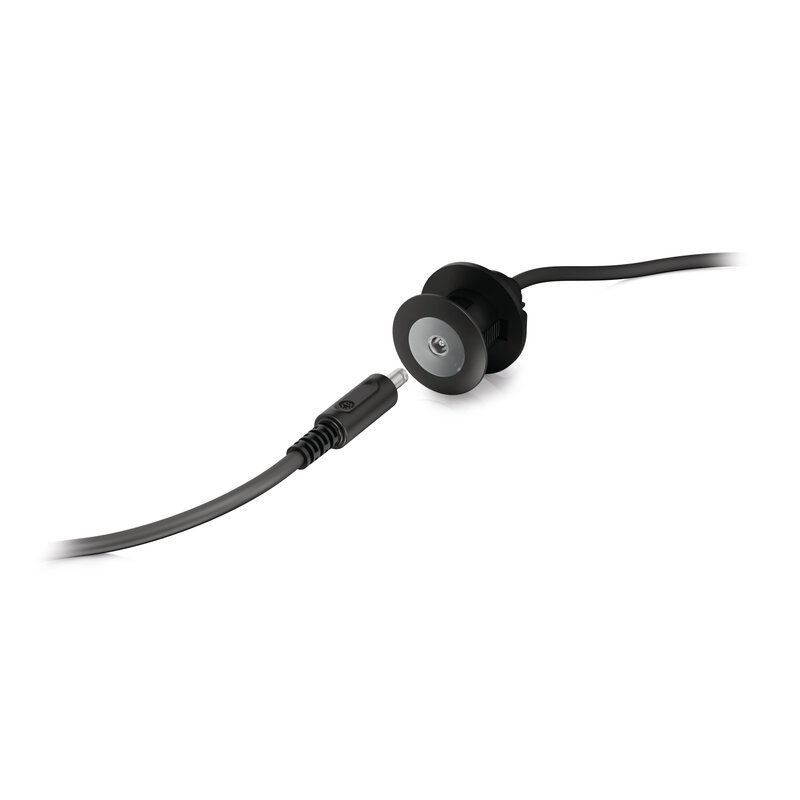

The CP002 also comes with a jack plug and has a light indicator that lights up when the system is connected to power.

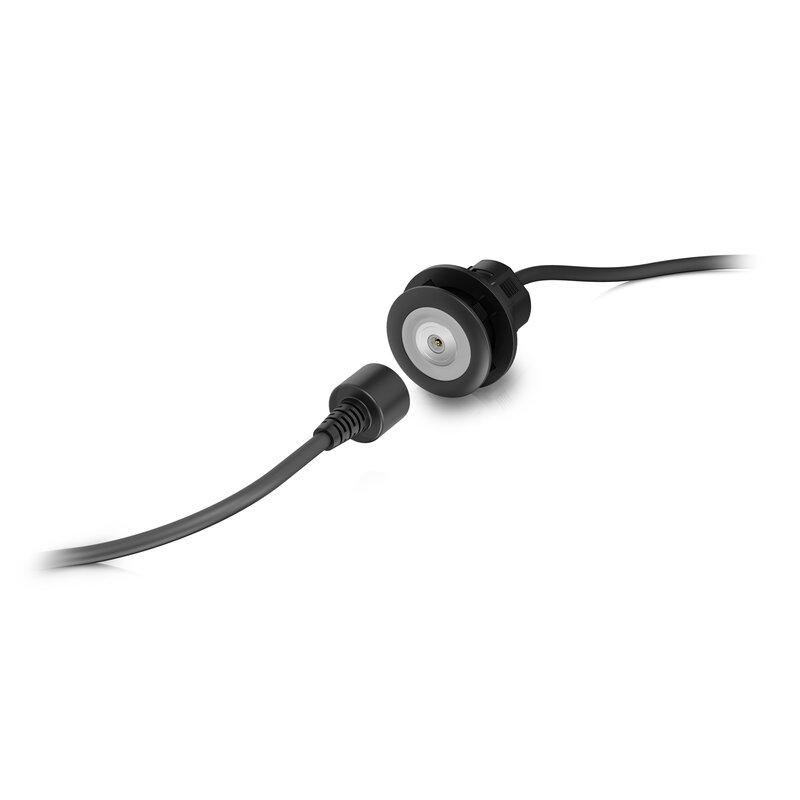

The CP003 is a magnetic charging point that has a light indicator, which lights up when the system is connected to power. The magnetic function protects the application by snapping apart if the charging cable is being pulled.
The Charging Points CP001, CP002 and CP003 are designed for an intuitive use when connecting your application to power.
A safety release cable is optional for CP001 and CP002. It protects the application by snapping apart if the charging cable is being pulled.
Got a question?
Our team is ready to assist you with technical information, starting a project and more.
Contact now
2D Drawings
3D Models
LA10 system user manual
HOMELINE product overview
Actuator systems for recliners
Recliner - How do I assemble the LA10 system for recliners without a battery?
Learn how to assemble the LA10 actuator system for recliners without a battery.
The system in the video consist of the following:
- Single actuator LA10
- Mounting bracket MB001 (mounting this is described in Mounting the control unit for LA10)
- Charging point CP002
- Connection cable
- Safety release cable
- Power cable
- SMPS006
- Charging cable
- Plug the Bluetooth® dongle into the LA10 actuator - you know it is in place when you hear a click.
- Connect the two LA10 actuator with the connection cable.
- Connect the Charging Point to the actuator LA10 using the remaining free slot.
- Connect the power cable to the power supply SMPS006.
- Plug the charging cable into the SMPS006 and connect the safety release cable..
- Connect the safety release cable to the charging point.
- You now have an assembled system for recliners
For more information about the LINAK® Recliner system, please visit the recliner application page.
Recliner - How do I know if my recliner has a LINAK system?
Learn how to see if your recliner has a LINAK® system.
You can usually see if a system is produced by LINAK by looking at the SMPS or under the batteries in the hand control.
Recliner - How do I mount the Charging Point in a recliner?
Learn how to mount the charging point CP002 and CP003 in a recliner with LINAK® systems.
- To mount the CP002 and CP003, you will need to drill a hole into the surface where you want to use it. For CP002, drill a 24-mm hole and for the CP003 drill a 30-mm hole.
- From the back, push the ring over the charging point until it is fastened tight to the fabric. You will hear a click.
- The inner ring of the Charging Point will light up when connected to power to indicate the charging.
For more information about the LINAK Recliner system, please visit the recliner application page.
Recliner - How do I pair the BP10 control with a recliner?
Learn how to pair the BP10 control to a recliner with a LINAK® system.
- (Re)connect the system to power.
- Press the two top buttons of the control unit at the same time.
- Your control is now paired to the system and is ready for use.
For more information about the LINAK recliner system, please visit the recliner application page.
