TD5 Advanced
The TWINDRIVE® TD5 is a dual actuator especially developed for box spring beds, where a high force is required. With a force of 7,000 N on both back and leg ends, the TD5 is the strongest dual actuator in the LINAK HOMELINE® portfolio. The TD5 Advanced is for more advanced bed systems requiring up to two extra motors in addition to the back and leg adjustment. The TD5 Advanced features a memory function enabling the user to save favourite positions.
The TD5 features the well-known LINAK® ZERO™ technology, allowing a standby power of max. 0.1 W. This means that the TD5 sleeps when the user sleeps. The TD5 features Bluetooth® Low Energy technology, which makes it capable of being controlled via the wireless LINAK hand controls, so that the user avoids having an annoying cable.
Furthermore, it makes it possible to control the bed via the Bed Control™ App, offering even more valuable features to the end user. The TD5 is lightweight and a slim design. Because it is also easy to mount, thanks to the pictograms on the side and smart closing devices, the TD5 is optimal for shipping - even directly to the end user.
The TD5 has an integrated Under Bed Light, which distributes the light evenly on the floor, allowing the user to find their way in the dark. The TD5 features mechanical emergency lowering via a hex key directly attached on the side of the TD5 – always in place when needed, for example, in case of a power cut.
Comparison chart for comfort beds actuators
Get the quick overview of the difference between the Standard and Advanced versions of both the TD4, the TD5 as well as the LA18 IC single actuators.
Got a question?
Our team is ready to assist you with technical information, starting a project and more.
Contact now

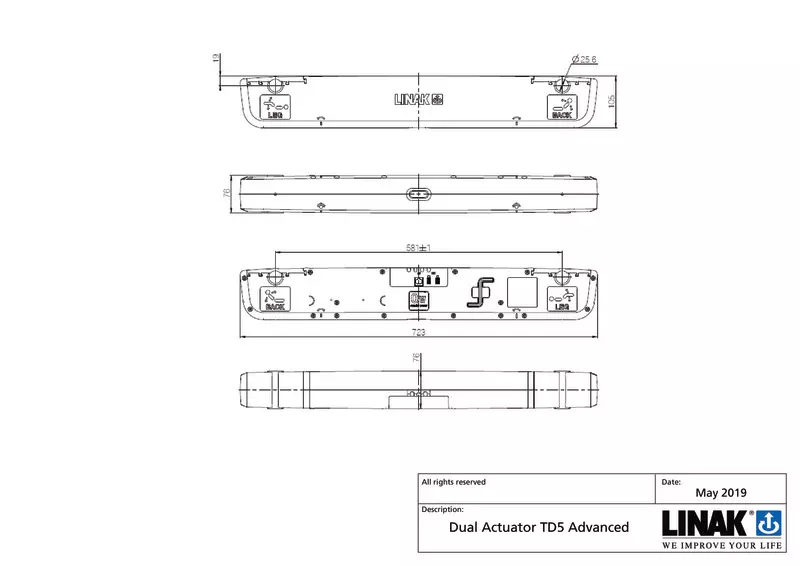

2D Drawings
TWINDRIVE® TD5 Advanced user manual
HOMELINE product overview
HC40 FRAME™
Actuator systems for comfort beds
Digital control options for adjustable beds - Adjust the bed with a mobile device
Pairing the Bed Control™ App to an adjustable double bed with a TD4/TD5 system
- Download and open the app and follow the onboarding flow.
- Choose ”Double bed” as your bed type.
- Unplug the power of one bed for 60 seconds then plug it back in again.
- A light under the bed flashes to indicate pairing mode – a long flash means successful pairing.
- Unplug the power of the other bed for 60 seconds then plug it back in again.
- Name both beds.
- Choose the number of motors. With two motors, you can adjust leg + back. If they can perform additional adjustments you have 3 or 4 motors.
- To adjust the bed, tap the part you want to move and use the arrows. Scroll sideways on the bed names to choose which bed to operate.
Pairing the Bed Control™ App to an adjustable single bed with a TD4/TD5 system
- Download and open the app and follow the onboarding flow.
- Choose ”Single bed” as your bed type.
- Unplug the power of the bed for 60 seconds then plug it back in again.
- A light under the bed flashes to indicate pairing mode – a long flash means successful pairing.
- Name your bed.
- Choose number of motors. With two motors, the bed can adjust leg + back. If it can perform additional adjustments, you have 3 or 4 motors.
- To adjust the bed, tap the part you want to move and use the arrows.
Pairing the Bed Control™ App to an adjustable synchronised double bed with a TD4/TD5 advanced system
Please note that this requires a wired connection between the two TD4 or TD5 Advanced motors.
- Download and open the app and follow the onboarding flow.
- Choose ”Double bed - syncronised” as your bed type.
- Unplug the power of the bed for 60 seconds, then plug it back in again.
- A light under the bed flashes to indicate pairing mode – a long flash means successful pairing.
- Name your bed.
- Choose number of motors. Two motors mean you can adjust leg + back. If it can perform additional adjustments you have 3 or 4 motors.
- To adjust the bed, tap the part you want to move and use the arrows.
Create a system with the TD4 Advanced and the CBH Advanced combined
How to connect a system with the TD4 Advanced and the CBH Advanced
The system consists of:
1 x TD4 Advanced
1 x Switch Mode Power Supply
1 x CBH Advanced
1 x 2-poled DC cable
1 x Serial cable
1 x Bluetooth® hand control
Single actuator(s)
2 x screws
- Place the CBH Advanced onto the TD4 Advanced & use two screws to fasten it
- Plug the serial cable into the TD4 Advanced and channel A1 on the CBH Advanced
- Plug a 2-pole DC cable into the TD4 Advanced and channel DC on the CBH Advanced
- Connect the SMPS to the TD4 Advanced
- Connect single actuators in channels 1 and 2 for adjustment of, for example, neck rest and foot rest.
- If needed, connect massage motors in channels 3A and 3B
- Connect to the mains
- Pair the hand control (press the two top buttons simultaneously)
- The system is now ready for setup
Mechanical emergency lowering of LINAK® TWINDRIVE® TD4 or TD5
Watch the TWINDRIVE TD4 instructional video to learn more about the innovative mechanical emergency lowering feature. This procedure also apply to our TD5 dual actuators.
Mounting the TWINDRIVE TD4 and TD5
Watch the instructional video to learn how to mount the TWINDRIVE TD4 and TD5.
Pairing the TWINDRIVE® TD4 or TD5
The TWINDRIVE TD4 and TD5 makes it easy to connect to a control or a mobile device via the LINAK Bed Control app.
Parallel drive with the TD4/TD5 Advanced
How to connect a TD4/TD5 Advanced system and use parallel drive
The system consists of:
2 x TD4/TD5 Advanced
2 x Switch Mode Power Supply
1 x Serial cable
1 x Bluetooth® hand control
- Connect 2 x SMPS to the 2 x TD4/TD5 Advanced
- Use one serial cable to connect the two TD4/TD5 Advanced
- Connect both actuators to the mains
- Pair the hand control
- The TD4/TD5 system now runs in parallel when using the hand control
TD4/TD5 - How to set up a Bluetooth handset
- Set the TD4/TD5 in pairing mode by connecting it to the mains.
- The product is now in pairing mode. The Under Bed Light will blink to indicate this.
- Press the two top buttons on the Bluetooth® hand control at the same time. Now the light will give a long blink and indicate that the control and the actuator are paired.
